Turbo Tachometer factory look of Fiero dash

Let see if I can figure out how to wire this in my Fiero dash so I can see how much boost my Supercharger is putting out. This was the closest Tachometer with a boast gauge as I could find to make it look stock. It's out of a 1993 Pontiac Sunbird turbo car, Pretty hard to find these around anymore.

In the first photo below shows from left to right the stock Fiero Tachometer then the Sunbird turbo Tachometer then a turbo Tachometer out of a GMC Syclone. I chose to use the Sunbird one since it to me matches the stock Fiero one the closest.
This photo belwb shows the 1993 Sunbird cluster I got the tachometer I will be using.
Below is the Fiero Dash I'll be using.

This photo below shows the 1993 Pontiac Sunbird Tachometer and the 1991 Gmc Syclone Tachometer.

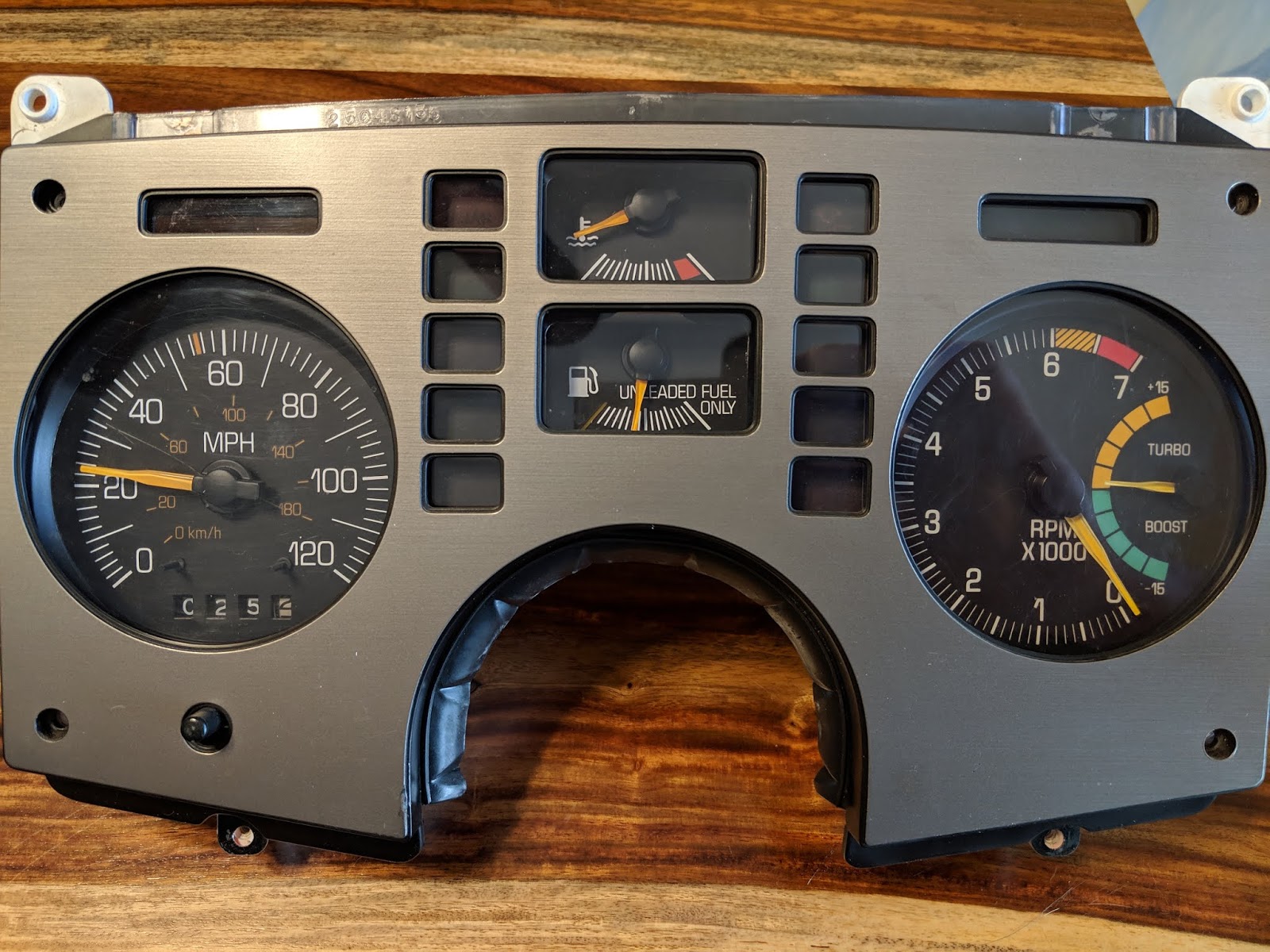

Below is the finished product, Not to shabby.

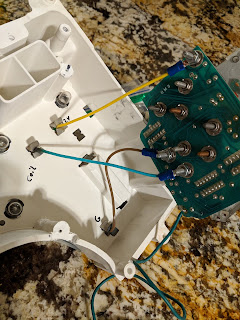

I decided the best way to connect the Sunbird tach to the Fiero's wiring was  to soldier one end of each of the three wires to the Fiero dashboard clips. The other end I used the ring terminals pictured below to attach to the back of the Sunbird Turbo Tachometer.



 Below marked in black marker is two ares I had to cut down 4.6mm to make the tachometer fit properly I'm the fierF housing.

These next couple of photos were some I found online that I used.
